Loki Annotate - Bulk RNA-seq

This notebook demonstrates how to run Loki Annotate on the bulk RNA-seq dataset. It takes about 2 mins to run this notebook on MacBook Pro.

[1]:

import pandas as pd
import os
import torch
from pathlib import Path
from PIL import Image
import matplotlib.pyplot as plt

import loki.annotate
import loki.preprocess
import loki.utils
import loki.plot

/opt/anaconda3/envs/loki/lib/python3.9/site-packages/timm/models/layers/__init__.py:48: FutureWarning: Importing from timm.models.layers is deprecated, please import via timm.layers
  warnings.warn(f"Importing from {__name__} is deprecated, please import via timm.layers", FutureWarning)

We provide the embeddings generated from the OmiCLIP model. The sample data and embeddings are stored in the directory data/loki_annotate/bulk_RNAseq_data, which can be donwloaded from Google Drive link.

Here is a list of the files that are needed to run the tissue annotation on example data:

.
├── adipose
│   ├── checkpoints
│   │   ├── bulk_adipose_txt_features_zeroshot.csv
│   │   ├── samplev02_img_features_zeroshot.csv
│   │   ├── samplev03_img_features_zeroshot.csv
│   │   └── samplev04_img_features_zeroshot.csv
│   └── image_data
│       ├── samplev02_coords.json
│       ├── samplev02_raw.h5ad
│       ├── samplev03_coords.json
│       ├── samplev03_raw.h5ad
│       ├── samplev04_coords.json
│       └── samplev04_raw.h5ad
├── fibroblast
│   ├── checkpoints
│   │   ├── FZ_P14_img_features_zeroshot.csv
│   │   ├── FZ_P18_img_features_zeroshot.csv
│   │   ├── FZ_P20_img_features_zeroshot.csv
│   │   └── bulk_fibroblast_txt_features_zeroshot.csv
│   └── image_data
│       ├── FZ_P14.tif
│       ├── FZ_P14_coords.json
│       ├── FZ_P14_raw.h5ad
│       ├── FZ_P18.tif
│       ├── FZ_P18_coords.json
│       ├── FZ_P18_raw.h5ad
│       ├── FZ_P20.tif
│       ├── FZ_P20_coords.json
│       └── FZ_P20_raw.h5ad
└── tumor
    ├── checkpoints
    │   ├── TCGA-A2-A0CL-01_image_embeddings.pt
    │   ├── TCGA-A2-A0CL-01_text_embeddings.pt
    │   ├── TCGA-A2-A0CW-01_image_embeddings.pt
    │   ├── TCGA-A2-A0CW-01_text_embeddings.pt
    │   ├── TCGA-AO-A0J5-01_image_embeddings.pt
    │   └── TCGA-AO-A0J5-01_text_embeddings.pt
    └── image_data
        ├── TCGA-A2-A0CL-01_coords.pt
        ├── TCGA-A2-A0CL-01_downsized.jpg
        ├── TCGA-A2-A0CW-01_coords.pt
        ├── TCGA-A2-A0CW-01_downsized.jpg
        ├── TCGA-AO-A0J5-01_coords.pt
        ├── TCGA-AO-A0J5-01_downsized.jpg
        └── polygons.json

[2]:

data_dir = './data/loki_annotate/bulk_RNAseq_data/'

[3]:

case_name = '_img_features_zeroshot'

Loki Annote with bulk RNA-seq data of tumor

Use Loki Annotate to annotate tumor cell enriched regions in 3 H&E images of breast cancer tissues.

TCGA data

The TCGA breast cancer slide files can be downloaded from the GDC data portal. We provide the image files downsized by 32 times for visualization.

The bulk RNA-seq data can be downloaded from cBioportal.

[ ]:

sample_type = 'tumor'
slide_dict = {
        "TCGA-A2-A0CL-01": "TCGA-A2-A0CL-01Z-00-DX1.5342E971-DCD2-42C4-B4FF-E6942A95829E.svs",
        "TCGA-A2-A0CW-01": "TCGA-A2-A0CW-01Z-00-DX1.8E313A22-B0E8-44CF-ADEA-8BF29BA23FFE.svs",
        "TCGA-AO-A0J5-01": "TCGA-AO-A0J5-01Z-00-DX1.20C14D0C-1A74-4FE9-A5E6-BDDCB8DE7714.svs"
        }

[4]:

for case_id, slide_path in slide_dict.items():
    print(case_id)
    slide_id = Path(slide_path).stem
    image_path = os.path.join(data_dir, sample_type, 'image_data', case_id+'_downsized.jpg')
    coor_path = os.path.join(data_dir, sample_type, 'image_data', case_id+'_coords.pt')
    image_embedding_path = os.path.join(data_dir, sample_type, 'checkpoints', case_id+'_image_embeddings.pt')
    omic_embedding_path = os.path.join(data_dir, sample_type, 'checkpoints', case_id+'_text_embeddings.pt')

    coor = torch.load(coor_path)
    img_features = torch.load(image_embedding_path)  # Image embeddings (shape: [n, 768])
    bulk_features = torch.load(omic_embedding_path)   # Omic features (shape: [768])
    weight = loki.annotate.annotate_with_bulk(img_features, bulk_features, tensor=True)[0].squeeze().numpy()
    weight = loki.utils.cap_quantile(weight, cap_max=0.99, cap_min=0.1)
    polygon_config_path = os.path.join(data_dir, sample_type, 'image_data', 'polygons.json')

    polygons, polygons_color, polygons_thickness = loki.utils.read_polygons(polygon_config_path, slide_path)
    heatmap, image = loki.plot.plot_heatmap(
        coor,
        weight,
        image_path,
        polygons,
        polygons_color,
        polygons_thickness,
    )

    loki.plot.show_images_side_by_side(image, heatmap)

TCGA-A2-A0CL-01

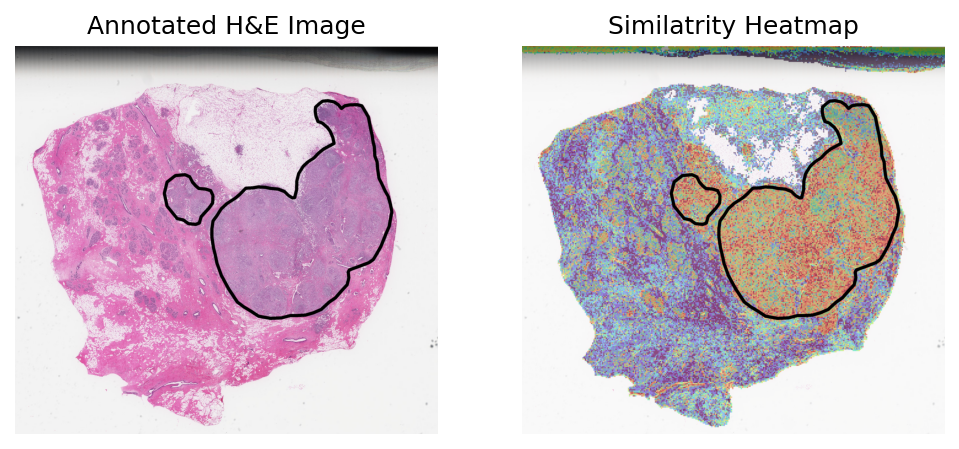

../_images/notebooks_Loki_Annotate_case_study_bulk_RNAseq_9_1.png

TCGA-A2-A0CW-01

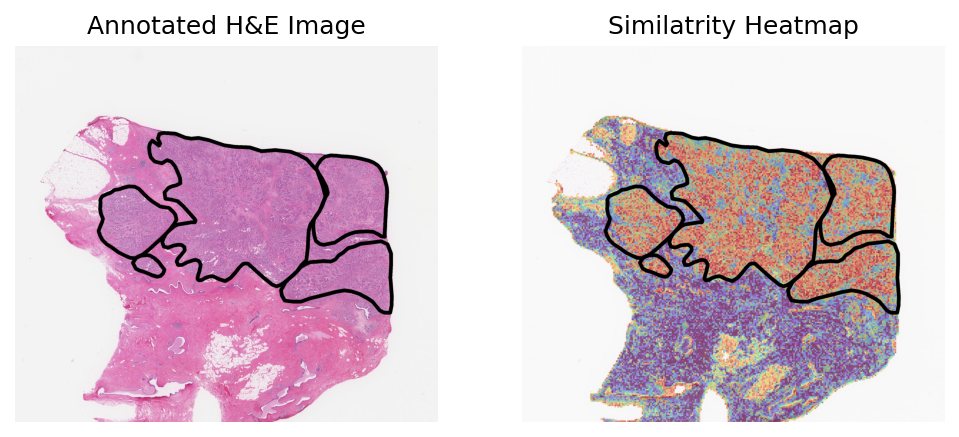

../_images/notebooks_Loki_Annotate_case_study_bulk_RNAseq_9_3.png

TCGA-AO-A0J5-01

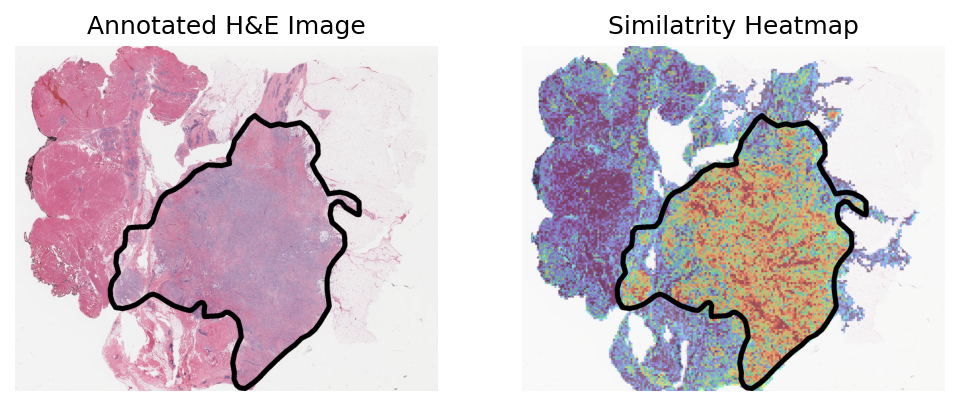

../_images/notebooks_Loki_Annotate_case_study_bulk_RNAseq_9_5.png

Loki Annote with bulk RNA-seq data of fibroblast

Use Loki Annotate to annotate fibroblast cell enriched regions in 3 H&E images of heart failure tissues.

[4]:

sample_type = 'fibroblast'
s=35
linewidth=5
xlim=[0,10000]
ylim=[0,10000]
bulk_text_feature = pd.read_csv(os.path.join(data_dir, sample_type, 'checkpoints', 'bulk_fibroblast_txt_features_zeroshot.csv'), index_col=0)

Heart failure sample 1

[5]:

sample_name = 'FZ_P20'
st_data_path = os.path.join(data_dir, sample_type, 'image_data', sample_name+'_raw.h5ad')
json_path = os.path.join(data_dir, sample_type, 'image_data', sample_name+'_coords.json')
st_ad, library_id, roi_polygon = loki.preprocess.load_data_for_annotation(st_data_path, json_path)

fullres_img_path = os.path.join(data_dir, sample_type, 'image_data', sample_name+'.tif')
fullres_img = Image.open(fullres_img_path)
img_feature_path = os.path.join(data_dir, sample_type, 'checkpoints', sample_name+case_name+'.csv')
img_feature = pd.read_csv(img_feature_path, index_col=0)

/opt/anaconda3/envs/loki/lib/python3.9/site-packages/anndata/_core/anndata.py:1756: UserWarning: Variable names are not unique. To make them unique, call `.var_names_make_unique`.
  utils.warn_names_duplicates("var")
/opt/anaconda3/envs/loki/lib/python3.9/site-packages/loki/preprocess.py:282: ImplicitModificationWarning: Trying to modify attribute `.obs` of view, initializing view as actual.
  st_ad.obs[["pixel_y", "pixel_x"]] = None  # Ensure the columns exist
/opt/anaconda3/envs/loki/lib/python3.9/site-packages/PIL/Image.py:3368: DecompressionBombWarning: Image size (93006507 pixels) exceeds limit of 89478485 pixels, could be decompression bomb DOS attack.
  warnings.warn(

[6]:

loki.plot.plot_img_with_annotation(fullres_img, roi_polygon, linewidth, xlim, ylim)
plt.savefig(os.path.join(data_dir, sample_type, sample_name+'_fullres.jpg'))
plt.close()

[7]:

st_ad.obs['bulk_simi'] = loki.annotate.annotate_with_bulk(img_feature, bulk_text_feature)

[8]:

loki.plot.plot_annotation_heatmap(st_ad, roi_polygon, s, linewidth, xlim, ylim)
plt.savefig(os.path.join(data_dir, sample_type, sample_name+'_heatmap.jpg'))
plt.close()

[9]:

image_path = os.path.join(data_dir, sample_type, sample_name+'_fullres.jpg')
image = loki.annotate.load_image_annotation(image_path)

heatmap_path = os.path.join(data_dir, sample_type, sample_name+'_heatmap.jpg')
heatmap = loki.annotate.load_image_annotation(heatmap_path)
heatmap = loki.plot.blend_images(heatmap, image)

[10]:

loki.plot.show_images_side_by_side(image, heatmap)

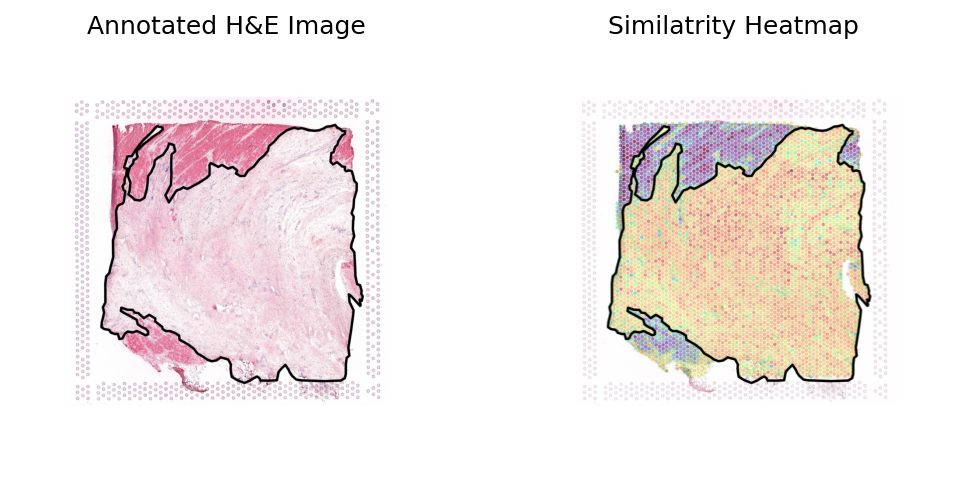

../_images/notebooks_Loki_Annotate_case_study_bulk_RNAseq_18_0.png

Heart failure sample 2

[11]:

sample_name = 'FZ_P18'
st_data_path = os.path.join(data_dir, sample_type, 'image_data', sample_name+'_raw.h5ad')
json_path = os.path.join(data_dir, sample_type, 'image_data', sample_name+'_coords.json')
st_ad, library_id, roi_polygon = loki.preprocess.load_data_for_annotation(st_data_path, json_path)

fullres_img_path = os.path.join(data_dir, sample_type, 'image_data', sample_name+'.tif')
fullres_img = Image.open(fullres_img_path)
img_feature_path = os.path.join(data_dir, sample_type, 'checkpoints', sample_name+case_name+'.csv')
img_feature = pd.read_csv(img_feature_path, index_col=0)

/opt/anaconda3/envs/loki/lib/python3.9/site-packages/anndata/_core/anndata.py:1756: UserWarning: Variable names are not unique. To make them unique, call `.var_names_make_unique`.
  utils.warn_names_duplicates("var")
/opt/anaconda3/envs/loki/lib/python3.9/site-packages/loki/preprocess.py:282: ImplicitModificationWarning: Trying to modify attribute `.obs` of view, initializing view as actual.
  st_ad.obs[["pixel_y", "pixel_x"]] = None  # Ensure the columns exist
/opt/anaconda3/envs/loki/lib/python3.9/site-packages/PIL/Image.py:3368: DecompressionBombWarning: Image size (96294069 pixels) exceeds limit of 89478485 pixels, could be decompression bomb DOS attack.
  warnings.warn(

[12]:

loki.plot.plot_img_with_annotation(fullres_img, roi_polygon, linewidth, xlim, ylim)
plt.savefig(os.path.join(data_dir, sample_type, sample_name+'_fullres.jpg'))
plt.close()

[13]:

st_ad.obs['bulk_simi'] = loki.annotate.annotate_with_bulk(img_feature, bulk_text_feature)

[14]:

loki.plot.plot_annotation_heatmap(st_ad, roi_polygon, s, linewidth, xlim, ylim)
plt.savefig(os.path.join(data_dir, sample_type, sample_name+'_heatmap.jpg'))
plt.close()

[15]:

image_path = os.path.join(data_dir, sample_type, sample_name+'_fullres.jpg')
image = loki.annotate.load_image_annotation(image_path)

heatmap_path = os.path.join(data_dir, sample_type, sample_name+'_heatmap.jpg')
heatmap = loki.annotate.load_image_annotation(heatmap_path)
heatmap = loki.plot.blend_images(heatmap, image)

[16]:

loki.plot.show_images_side_by_side(image, heatmap)

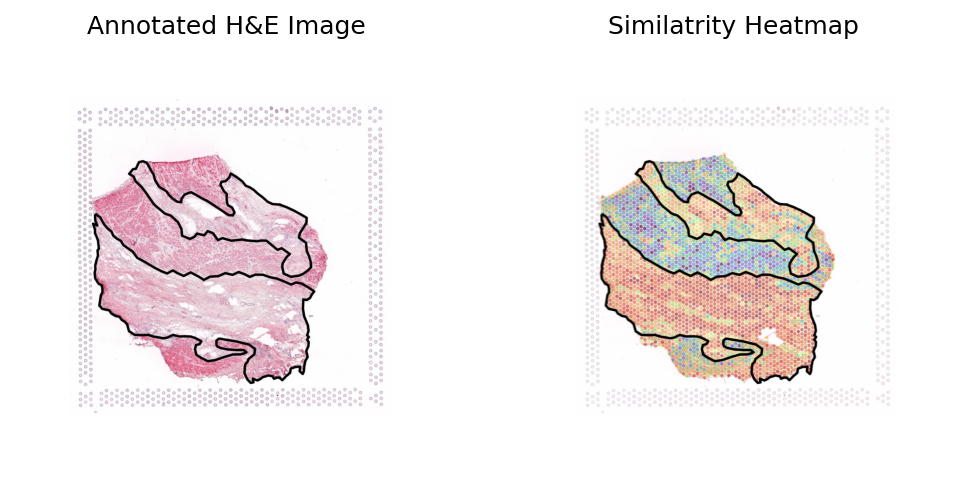

../_images/notebooks_Loki_Annotate_case_study_bulk_RNAseq_25_0.png

Heart failure sample 3

[17]:

sample_name = 'FZ_P14'
st_data_path = os.path.join(data_dir, sample_type, 'image_data', sample_name+'_raw.h5ad')
json_path = os.path.join(data_dir, sample_type, 'image_data', sample_name+'_coords.json')
st_ad, library_id, roi_polygon = loki.preprocess.load_data_for_annotation(st_data_path, json_path, in_tissue=False)

fullres_img_path = os.path.join(data_dir, sample_type, 'image_data', sample_name+'.tif')
fullres_img = Image.open(fullres_img_path)
img_feature_path = os.path.join(data_dir, sample_type, 'checkpoints', sample_name+case_name+'.csv')
img_feature = pd.read_csv(img_feature_path, index_col=0)

/opt/anaconda3/envs/loki/lib/python3.9/site-packages/PIL/Image.py:3368: DecompressionBombWarning: Image size (94551858 pixels) exceeds limit of 89478485 pixels, could be decompression bomb DOS attack.
  warnings.warn(

[18]:

loki.plot.plot_img_with_annotation(fullres_img, roi_polygon, linewidth, xlim, ylim)
plt.savefig(os.path.join(data_dir, sample_type, sample_name+'_fullres.jpg'))
plt.close()

[19]:

st_ad.obs['bulk_simi'] = loki.annotate.annotate_with_bulk(img_feature, bulk_text_feature)

[20]:

loki.plot.plot_annotation_heatmap(st_ad, roi_polygon, s, linewidth, xlim, ylim)
plt.savefig(os.path.join(data_dir, sample_type, sample_name+'_heatmap.jpg'))
plt.close()

[21]:

image_path = os.path.join(data_dir, sample_type, sample_name+'_fullres.jpg')
image = loki.annotate.load_image_annotation(image_path)

heatmap_path = os.path.join(data_dir, sample_type, sample_name+'_heatmap.jpg')
heatmap = loki.annotate.load_image_annotation(heatmap_path)
heatmap = loki.plot.blend_images(heatmap, image)

[22]:

loki.plot.show_images_side_by_side(image, heatmap)

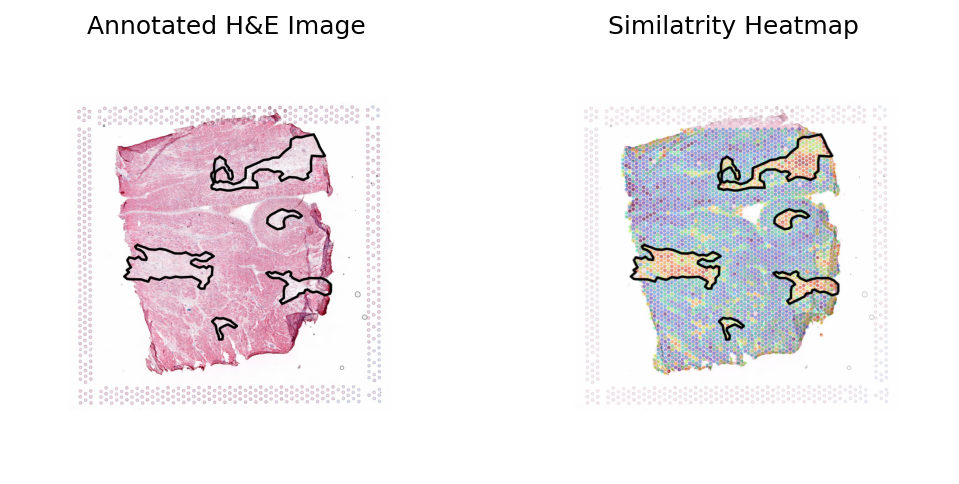

../_images/notebooks_Loki_Annotate_case_study_bulk_RNAseq_32_0.png

Loki Annote with bulk RNA-seq data of adipose

Use Loki Annotate to annotate adipose cell enriched regions in 3 H&E images of normal breast tissues.

[23]:

sample_type = 'adipose'
bulk_text_feature = pd.read_csv(os.path.join(data_dir, sample_type, 'checkpoints', 'bulk_adipose_txt_features_zeroshot.csv'), index_col=0)

Breast sample 1

[24]:

sample_name = 'samplev02'
st_data_path = os.path.join(data_dir, sample_type, 'image_data', sample_name+'_raw.h5ad')
json_path = os.path.join(data_dir, sample_type, 'image_data', sample_name+'_coords.json')
st_ad, library_id, roi_polygon = loki.preprocess.load_data_for_annotation(st_data_path, json_path)

fullres_img = st_ad.uns['spatial'][library_id]['images']['fullres']
img_feature_path = os.path.join(data_dir, sample_type, 'checkpoints', sample_name+case_name+'.csv')
img_feature = pd.read_csv(img_feature_path, index_col=0)

/opt/anaconda3/envs/loki/lib/python3.9/site-packages/loki/preprocess.py:282: ImplicitModificationWarning: Trying to modify attribute `.obs` of view, initializing view as actual.
  st_ad.obs[["pixel_y", "pixel_x"]] = None  # Ensure the columns exist

[25]:

s=50
linewidth=4
xlim=[0,4000]
ylim=[0,4000]
loki.plot.plot_img_with_annotation(fullres_img, roi_polygon, linewidth, xlim, ylim)
plt.savefig(os.path.join(data_dir, sample_type, sample_name+'_fullres.jpg'))
plt.close()

[26]:

st_ad.obs['bulk_simi'] = loki.annotate.annotate_with_bulk(img_feature, bulk_text_feature)

[27]:

loki.plot.plot_annotation_heatmap(st_ad, roi_polygon, s, linewidth, xlim, ylim)
plt.savefig(os.path.join(data_dir, sample_type, sample_name+'_heatmap.jpg'))
plt.close()

[28]:

image_path = os.path.join(data_dir, sample_type, sample_name+'_fullres.jpg')
image = loki.annotate.load_image_annotation(image_path)

heatmap_path = os.path.join(data_dir, sample_type, sample_name+'_heatmap.jpg')
heatmap = loki.annotate.load_image_annotation(heatmap_path)
heatmap = loki.plot.blend_images(heatmap, image)

[29]:

loki.plot.show_images_side_by_side(image, heatmap)

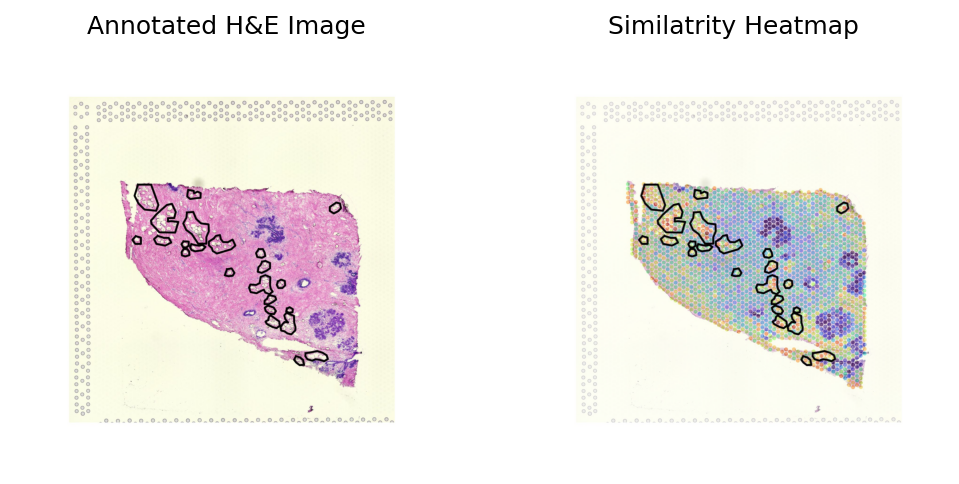

../_images/notebooks_Loki_Annotate_case_study_bulk_RNAseq_41_0.png

Breast sample 2

[30]:

sample_name = 'samplev03'
st_data_path = os.path.join(data_dir, sample_type, 'image_data', sample_name+'_raw.h5ad')
json_path = os.path.join(data_dir, sample_type, 'image_data', sample_name+'_coords.json')
st_ad, library_id, roi_polygon = loki.preprocess.load_data_for_annotation(st_data_path, json_path)

fullres_img = st_ad.uns['spatial'][library_id]['images']['fullres']
img_feature_path = os.path.join(data_dir, sample_type, 'checkpoints', sample_name+case_name+'.csv')
img_feature = pd.read_csv(img_feature_path, index_col=0)

/opt/anaconda3/envs/loki/lib/python3.9/site-packages/loki/preprocess.py:282: ImplicitModificationWarning: Trying to modify attribute `.obs` of view, initializing view as actual.
  st_ad.obs[["pixel_y", "pixel_x"]] = None  # Ensure the columns exist

[31]:

s=55
linewidth=4
xlim=[1500,21000]
ylim=[1500,21000]
loki.plot.plot_img_with_annotation(fullres_img, roi_polygon, linewidth, xlim, ylim)
plt.savefig(os.path.join(data_dir, sample_type, sample_name+'_fullres.jpg'))
plt.close()

[32]:

st_ad.obs['bulk_simi'] = loki.annotate.annotate_with_bulk(img_feature, bulk_text_feature)

[33]:

loki.plot.plot_annotation_heatmap(st_ad, roi_polygon, s, linewidth, xlim, ylim)
plt.savefig(os.path.join(data_dir, sample_type, sample_name+'_heatmap.jpg'))
plt.close()

[34]:

image_path = os.path.join(data_dir, sample_type, sample_name+'_fullres.jpg')
image = loki.annotate.load_image_annotation(image_path)

heatmap_path = os.path.join(data_dir, sample_type, sample_name+'_heatmap.jpg')
heatmap = loki.annotate.load_image_annotation(heatmap_path)
heatmap = loki.plot.blend_images(heatmap, image)

[35]:

loki.plot.show_images_side_by_side(image, heatmap)

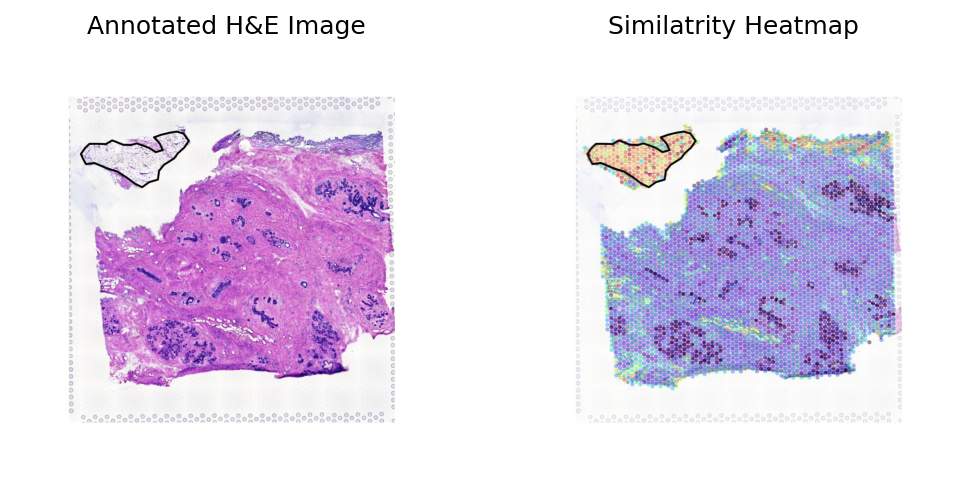

../_images/notebooks_Loki_Annotate_case_study_bulk_RNAseq_48_0.png

Breast sample 3

[36]:

sample_name = 'samplev04'
st_data_path = os.path.join(data_dir, sample_type, 'image_data', sample_name+'_raw.h5ad')
json_path = os.path.join(data_dir, sample_type, 'image_data', sample_name+'_coords.json')
st_ad, library_id, roi_polygon = loki.preprocess.load_data_for_annotation(st_data_path, json_path)

fullres_img = st_ad.uns['spatial'][library_id]['images']['fullres']
img_feature_path = os.path.join(data_dir, sample_type, 'checkpoints', sample_name+case_name+'.csv')
img_feature = pd.read_csv(img_feature_path, index_col=0)

/opt/anaconda3/envs/loki/lib/python3.9/site-packages/loki/preprocess.py:282: ImplicitModificationWarning: Trying to modify attribute `.obs` of view, initializing view as actual.
  st_ad.obs[["pixel_y", "pixel_x"]] = None  # Ensure the columns exist

[37]:

s=55
linewidth=5
xlim=[2000,21000]
ylim=[2000,21000]
loki.plot.plot_img_with_annotation(fullres_img, roi_polygon, linewidth, xlim, ylim)
plt.savefig(os.path.join(data_dir, sample_type, sample_name+'_fullres.jpg'))
plt.close()

[38]:

st_ad.obs['bulk_simi'] = loki.annotate.annotate_with_bulk(img_feature, bulk_text_feature)

[39]:

loki.plot.plot_annotation_heatmap(st_ad, roi_polygon, s, linewidth, xlim, ylim)
plt.savefig(os.path.join(data_dir, sample_type, sample_name+'_heatmap.jpg'))
plt.close()

[40]:

image_path = os.path.join(data_dir, sample_type, sample_name+'_fullres.jpg')
image = loki.annotate.load_image_annotation(image_path)

heatmap_path = os.path.join(data_dir, sample_type, sample_name+'_heatmap.jpg')
heatmap = loki.annotate.load_image_annotation(heatmap_path)
heatmap = loki.plot.blend_images(heatmap, image)

[41]:

loki.plot.show_images_side_by_side(image, heatmap)

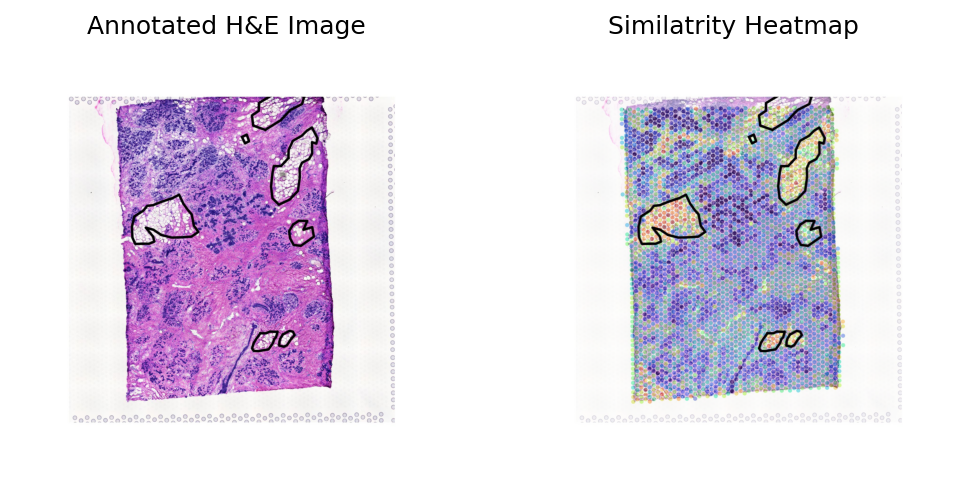

../_images/notebooks_Loki_Annotate_case_study_bulk_RNAseq_55_0.png

[ ]:
